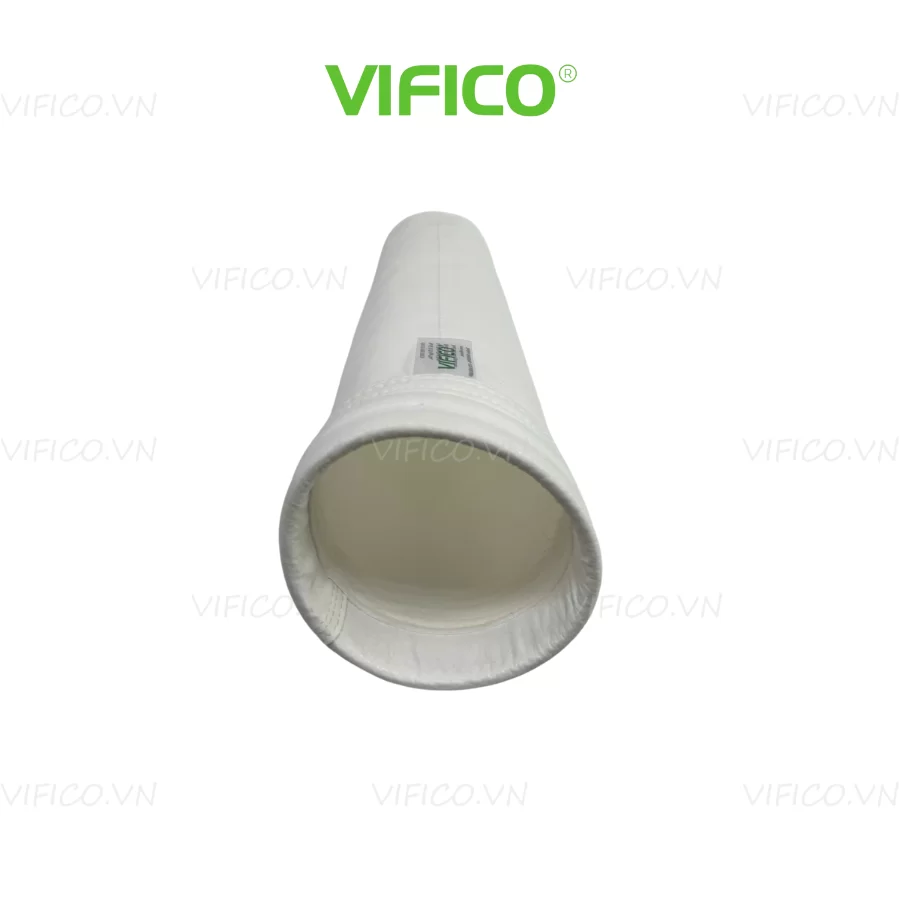

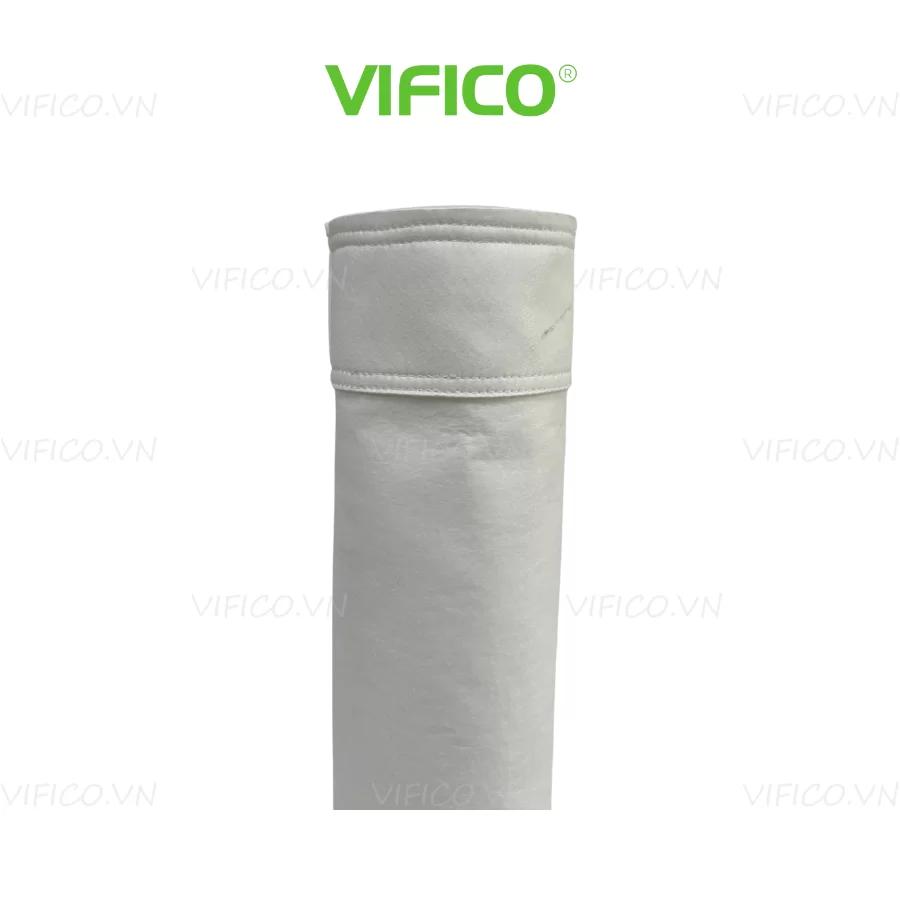

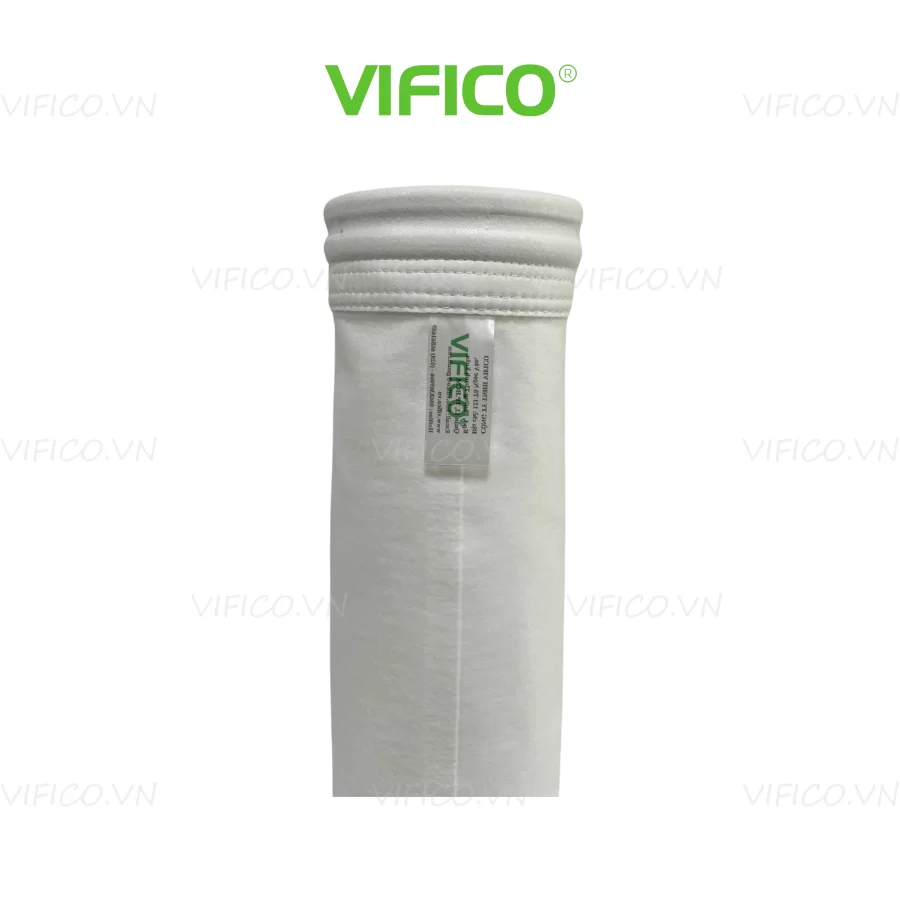

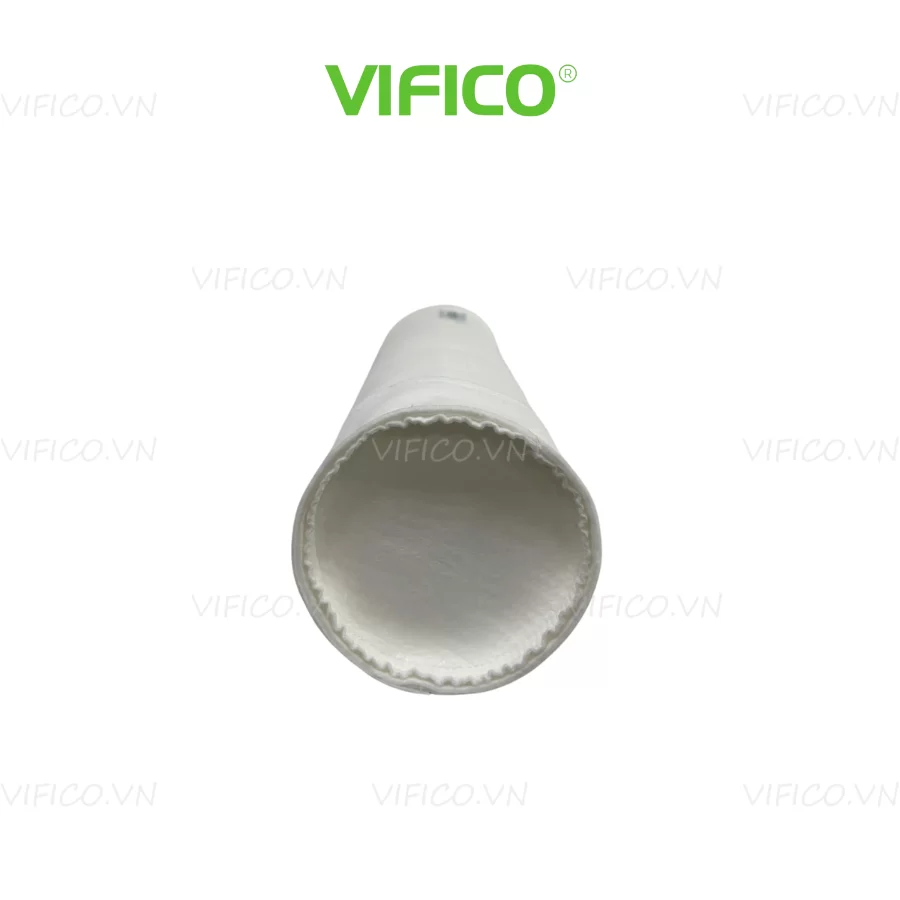

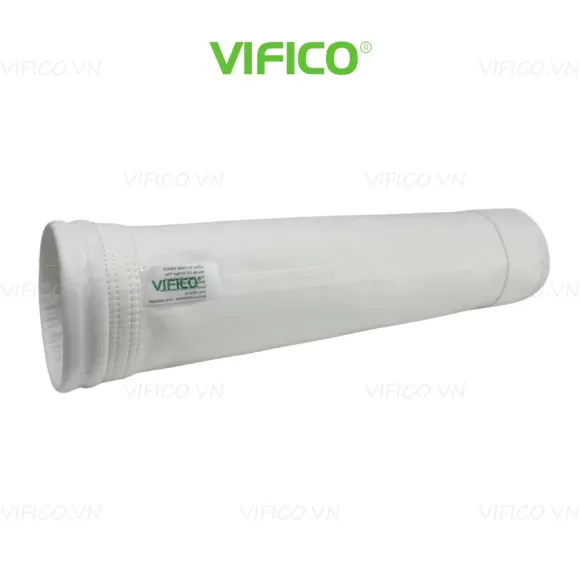

Polyester Filter Bag

Material: Primary Polyester.

Working temperature: 130oC to 150oC.

Working conditions: Polyester dust filter bag used in dust filtration system/dry dust recovery system, dust properties with high abrasion, good oxidation resistance.

At VIFICO, customers will be supported to survey, consult and provide free samples. All dust filter fabrics are imported 100% from reputable, quality and selected suppliers, VIFICO provides full documents of CO and CQ import. Dust filterbags are produced on a European standard technology line, reaching a capacity of more than 20,000 products/ months with a staff of many years of experience in the industry.

POLYESTER DUST FILTER BAG

Characteristics

Polyester dust filter bags produced from Polyester non-woven dust filter cloth are white, capable of withstanding temperatures from 130oC to 150oC, high abrasion resistance, good oxidation resistance. However, Polyester dust filter bag life will be affected by the water content in the exhaust gas when working at high temperatures. Therefore, humidity control of flue gas and compressed air used to wash clean dust is one of the necessary conditions to use dust filter bags effectively. Polyester is the most popular material used in the industrial dust filter industry today because of its flexibility and low cost, economic efficiency and high dust treatment.

E.g.
- Efficientindustrial dust recovery/ disposal PE bags.

- Dust with high cohesion, PE bag for moisture-proof surface treatment.

- Fine dust <2.5 microns, acidic or alkaline, low emission concentration requirements, selection of PE bags produced from small diameter fibers, fabric weight from 550 - 600g/m2 , PTFE membrane treatment...

Applications

In Vietnam, Polyester dust filter bags are used in all industries that generate dust in some or all production stages such as:

- Construction materials: Cement, Steel, Gypsum, Ceramic tiles...

- Mining and mineral processing industry: Stone powder, Sand, Glass, Alumina, Non-ferrous

metals...

- Food and feed industry, Pharmaceuticals, Tobacco- Other industries: Wood, Fertilizer, Battery, Tire, Plastic, Waste treatment, Boiler, Thermal power, Hot asphalt...etc.

Some common types and sizes of Polyester dust filter bags:

Specification: Cylinder bag, round bottom, mouth (round stainless steel ring, elastic flat stainless steel, felt, folded goat strangulation edge, goat ears...)

- Diameter D110mm, D115mm, D120mm, D125mm, D130mm, D133mm, D135mm, D140mm; D148mm, D150mm, D155mm, D160mm, D165mm.

- Length: 1000mm, 1200mm, 1500mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm, 5500mm, 6000mm, 8000mm.

- Some common filter bag sizes: D130x1500 mm, D130x2000 mm, D135x2500mm, D155x6000 mm.

Polyester Filter Cloth Specifications

Construction Needle punch felt
Fiber Composition 100% Polyester
Scrim Composition Polyester
Felt Area Weight (g/m2) 500, 550, 600
Thickness (mm) 1.8 - 2.0 mm
Mean Air Permeability (L/m².S@200Pa)  250 - 350
Breaking Strength-MD/warp (N/5x20cm) 1000
Breaking Strength-CMD/weft (N/5x20cm) 1300
Shrinkage at 150oC within 90 min (%) <1.5
Operating Temperatures
Recommended Maximum Continuous (oC)
130
Recommended Maximum Surge (oC) 150
Finish Heat set, singed, calendared W/O Repellent, Membrane PTFE.
